TDK

ACM4520V-142-2P-T00 | TDK

Common mode filter, 100 MHz, 1 A, 50 V (DC), 50 VDC, 2.5 µH, SMD, ACM4520V-142-2P-T00

default S
front S
default L
front L
Total price
(0.96 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
800 pcs.
0.96 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

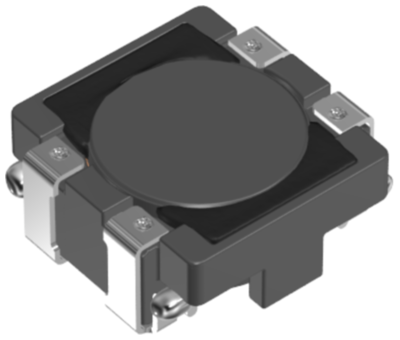

Common mode filter, ACM4520V-142-2P-T00, TDK

The ACM4520V-142-2P-T00 is a common mode filter automotive power line for infotainment. This product is designed for use up to 1.5A in an environment of 125°C.

Features

  • Low profile design makes it optimal for surface mounting
  • Operating temperature range: –40 to +125°C
  • Compliant with AEC-Q200

Applications

  • Measures against common mode noise in power lines for various DC power lines
  • Multimedia devices
  • Various electronic devices
Technical specifications
ohmic resistance 450 Ω
Connection SMD
Version Common mode filter
Rated Voltage 50 VDC
Inductance per line 0.0025 mH
integrated switch No
max. frequency 100 MHz
max. operating temperature 85 °C
min. operating temperature -40 °C
With fuse No
Rated voltage (DC) 50 V
Rated current 1 A
Show similar products (0)
Logistics
Country of origin JP
Customs tariff number 85363010
Original Packaging Reel with 800 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Connection
min. operating temperature
Rated voltage (DC)
max. operating temperature
Rated current
Common mode filter, 100 MHz, 1.5 A, 50 V (DC), 50 VDC, 600 nH, SMD, ACM4520V-231-2P-T00
Order No.:
 46D6723
Manufacturer:
 TDK
Manufacturer SKU
 ACM4520V-231-2P-T00
800 pcs.
0.96 €
0.00 € *
Currently not in stock, we will order for you
230 Ω
Common mode filter
50 VDC
100 MHz
SMD
-40 °C
50 V
85 °C
1.5 A
Common mode filter, 100 MHz, 1 A, 50 V (DC), 50 VDC, 2.5 µH, SMD, ACM4520V-142-2P-T00
Order No.:
 46D6722
Manufacturer:
 TDK
Manufacturer SKU
 ACM4520V-142-2P-T00
800 pcs.
0.96 €
0.00 € *
Currently not in stock, we will order for you
450 Ω
Common mode filter
50 VDC
100 MHz
SMD
-40 °C
50 V
85 °C
1 A
Common mode filter, 100 MHz, 1.4 A, 50 V (DC), 50 VDC, 1.1 µH, SMD, ACM4520V-421-2P-T00
Order No.:
 46D6724
Manufacturer:
 TDK
Manufacturer SKU
 ACM4520V-421-2P-T00
800 pcs.
0.96 €
0.00 € *
Currently not in stock, we will order for you
420 Ω
Common mode filter
50 VDC
100 MHz
SMD
-40 °C
50 V
85 °C
1.4 A
Common mode filter, 100 MHz, 1.2 A, 50 V (DC), 50 VDC, 1.6 µH, SMD, ACM4520V-901-2P-T00
Order No.:
 46D6725
Manufacturer:
 TDK
Manufacturer SKU
 ACM4520V-901-2P-T00
800 pcs.
0.96 €
0.00 € *
Currently not in stock, we will order for you
900 Ω
Common mode filter
50 VDC
100 MHz
SMD
-40 °C
50 V
85 °C
1.2 A
