Common mode filter, 100 MHz, 200 mA, 20 V (DC), SMD, ACM2520-102-2P-T002

default S
front S
side S
back S
default L
front L
side L
back L
Total price
(0.61 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
10 pcs.
0.61 €
50 pcs.
0.55 €
250 pcs.
0.49 €
1000 pcs.
0.45 €
2000 pcs.
0.41 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

Common mode filter, ACM2520-102-2P-T002, TDK

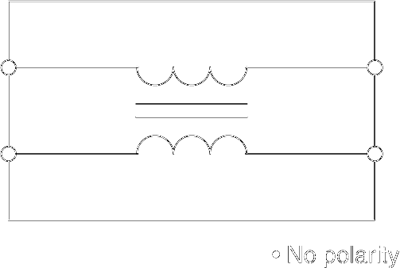

The ACM2520-102-2P-T002 is a common mode filter for high-speed differential signal line, general differential signal line.

Features

  • Downsized wound type chip common mode filter that maintains required common mode filter characteristics
  • Differential mode impedance is suppressed, so there is virtually no affect on high speed signals
  • There is a two-line type and a three-line type, so they can be used for various circuits and noise
  • Operating temperature range: –40 to +85°C

Applications

  • Common mode noise countermeasure for high-speed differential signals where influence to the signal is a concern
  • USB line for PCs and peripheral devices
  • LCD panel LVDS and Panel Link lines

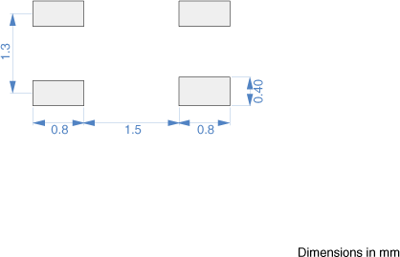

Technical specifications
ohmic resistance 0.9 Ω
Connection SMD
Version Common mode filter
integrated switch No
max. frequency 100 MHz
max. operating temperature 85 °C
min. operating temperature -40 °C
With fuse No
Rated voltage (DC) 20 V
Rated current 0.2 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Connection
min. operating temperature
Rated voltage (DC)
max. operating temperature
Rated current
Common mode filter, 100 MHz, 350 mA, 20 VDC, 880 nH, SMD, ACM2520-451-2P-T002
Order No.:
 46D6715
Manufacturer:
 TDK
Manufacturer SKU
 ACM2520-451-2P-T002
2000 pcs.
0.42 €
0.00 € *
Currently not in stock, we will order for you
450 Ω
Common mode filter
20 VDC
100 MHz
SMD
-40 °C
85 °C
0.35 A
Common mode filter, 100 MHz, 400 mA, 20 VDC, 660 nH, SMD, ACM2520-301-2P-T002
Order No.:
 46D6714
Manufacturer:
 TDK
Manufacturer SKU
 ACM2520-301-2P-T002
2000 pcs.
0.42 €
0.00 € *
Currently not in stock, we will order for you
300 Ω
Common mode filter
20 VDC
100 MHz
SMD
-40 °C
85 °C
0.4 A
Common mode filter, 100 MHz, 300 mA, 50 V (DC), 20 VDC, 1.23 µH, SMD, ACM2520-601-2P-T002
Order No.:
 46D6716
Manufacturer:
 TDK
Manufacturer SKU
 ACM2520-601-2P-T002
2000 pcs.
0.42 €
0.00 € *
Currently not in stock, we will order for you
600 Ω
Common mode filter
20 VDC
100 MHz
SMD
-40 °C
50 V
85 °C
0.3 A
Common mode filter, 100 MHz, 200 mA, 20 V (DC), SMD, ACM2520-102-2P-T002
Order No.:
 46D6713
Manufacturer:
 TDK
Manufacturer SKU
 ACM2520-102-2P-T002
10 pcs.
0.61 €
50 pcs.
0.55 €
250 pcs.
0.49 €
1000 pcs.
0.45 €
2000 pcs.
0.41 €
0.00 € *
Currently not in stock, we will order for you
0.9 Ω
Common mode filter
100 MHz
SMD
-40 °C
20 V
85 °C
0.2 A
Common mode filter, 100 MHz, 150 mA, 20 V (DC), 20 VDC, 2 µH, faston plug 6.3 mm, ACM2520-801-3P-T002
Order No.:
 46D6717
Manufacturer:
 TDK
Manufacturer SKU
 ACM2520-801-3P-T002
2000 pcs.
0.37 €
0.00 € *
Currently not in stock, we will order for you
1.6 Ω
Common mode filter
20 VDC
100 MHz
faston plug 6.3 mm
-40 °C
20 V
85 °C
0.15 A
