ACM2012-202-2P-T002 | TDK
Common mode filter, 100 MHz, 150 mA, 50 V (DC), 50 VDC, 4.8 µH, SMD, ACM2012-202-2P-T002
Unit Price (€ / pc.)
0.2654 € *
Standard delivery time from the manufacturer is: 36 Weeks

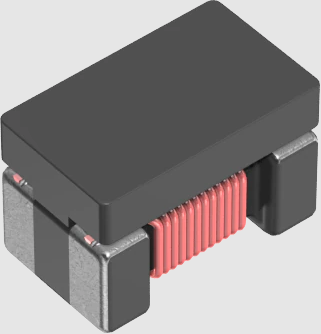

Common mode filter, ACM2012-202-2P-T002, TDK
The ACM2012-202-2P-T002 is a common mode filter automotive signal line for infotainment.
Features
- Impedance variation: Extensive lineup are available for compatibility with various usages
- Common mode EMI measure: Possible to suppress waveform common mode EMI without straining the waveform
- Highly reliable with a temperature range of –40 to +105°C
- Compliant with AEC-Q200
Applications
- Radiated noise suppression for car multimedia interfaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance per line | 4.8 µH | |
| Rated Voltage | 50 VDC | |
| With fuse | No | |
| Connection | SMD | |
| Rated voltage (DC) | 50 V | |
| max. operating temperature | 85 °C | |
| max. frequency | 100 MHz | |
| min. operating temperature | -40 °C | |
| ohmic resistance | 2000 Ω | |
| Version | common mode filter | |
| integrated switch | No | |
| Rated current | 150 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
