VLS6045EX-R47N | TDK

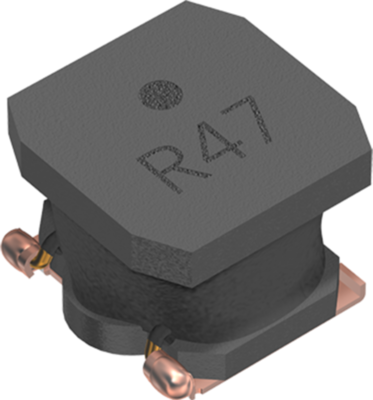

Choke, SMD 6045, 470 nH, 7 A, VLS6045EX-R47N
Not suitable for new designs
Unit Price (€ / pc.)
0.1999 € *
Standard delivery time from the manufacturer is: 18 Weeks
SMD choke, VLS6045EX-R47N, TDK
Features
- Magnetic shield type wound inductor for power circuits
- High Magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting
- Larger current and lower Rdc
- Operating temperature range: -40 to +105°C
Applications
- TV
- STB
- Gaming equipment
- AV equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 7 A | |
| DC resistance | 10 mΩ | |
| Saturation current | 13.5 A | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±30 % | |
| Length | 6 mm | |
| Height | 4.5 mm | |
| Width | 6 mm | |
| Inductance | 470 nH | |
| Design | SMD 6045 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
