VLS6045EX-220M-H | TDK
Choke, SMD 6045, 22 µH, 1.9 A, VLS6045EX-220M-H
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: On Request

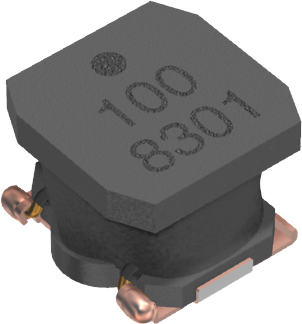

SMD choke, VLS6045EX-220M-H, TDK
Features
- Magnetic shield type wound inductor for power circuits
- High Magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting
- Larger current and lower Rdc
- Operating temperature range: -40 to +105°C
Applications
- TV
- STB
- Gaming equipment
- AV equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 22 µH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 2.4 A | |

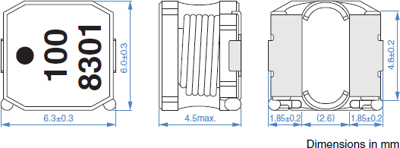

| Width | 6 mm | |
| DC current | 1.9 A | |
| Length | 6.3 mm | |
| DC resistance | 105 mΩ | |
| Measuring frequency | 100 kHz | |
| Height | 4.5 mm | |
| Design | SMD 6045 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
