VLS5045EX-151M | TDK

Choke, SMD 5045, 150 µH, 610 mA, VLS5045EX-151M

Order No.: 72D1443
EAN: 4099889006261
MPN:
VLS5045EX-151M
Series: VLS-EX

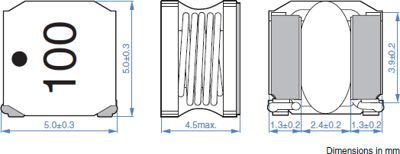

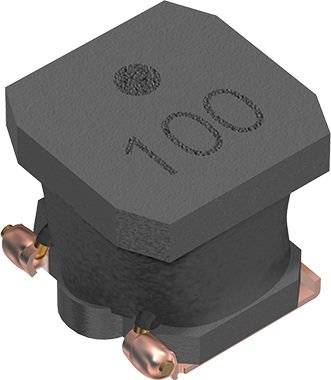

VLS5045EX-151M TDK Fixed Inductors Image 1
VLS5045EX-151M TDK Fixed Inductors Image 2
VLS5045EX-151M TDK Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
0.2868 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
430.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
0.2868 €

SMD choke, VLS5045EX-151M, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current was achieved by the metallic magnetic material
  • Operating temperature range: -40 to +105°C

Applications

  • HDDs
  • Smart phones
  • Compact power supply modules
  • Tablet terminal
Technical specifications
Filter Property Value
Inductance 150 µH
Tolerance ±20 %
Version SMD choke
Saturation current 560 mA
Width 5.3 mm
DC current 610 mA
Length 5 mm
DC resistance 949 mΩ
Measuring frequency 100 kHz
Height 4.5 mm
Design SMD 5045
Logistics
Property Value
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
