VLS4012CX-2R2M-1 | TDK

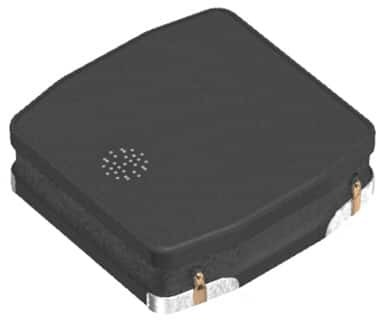

Choke, SMD 4012, 2.2 µH, 2.56 A, VLS4012CX-2R2M-1

default S
front S
side S
default L
front L
side L
Total price
(0.25 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1000 pcs.
0.25 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS4012CX-2R2M-1, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a ferrite magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current and lower Rdc
  • Operating temperature range: -40 to +105°C

Applications

  • Smart phones
  • HDDs
  • Mobile display panels
  • Compact power supply modules

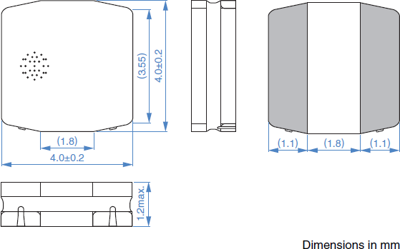

Technical specifications
Version SMD choke
Design SMD 4012
Width 4 mm
DC current 2.56 A
DC resistance 0.074 Ω
Height 1.2 mm
Inductance 0.0022 mH
Length 4 mm
Measuring frequency 1 MHz
Saturation current 2.01 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 7 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 4012, 47 µH, 580 mA, VLS4012CX-470M-1
Order No.:
 72D1434
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-470M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.047 mH
0.58 A
1.498 Ω
Choke, SMD 4012, 2.2 µH, 2.56 A, VLS4012CX-2R2M-1
Order No.:
 72D1433
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-2R2M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.0022 mH
2.56 A
0.074 Ω
Choke, SMD 4012, 10 µH, 1.3 A, VLS4012CX-100M-1
Order No.:
 72D1429
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-100M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.01 mH
1.3 A
0.294 Ω
Choke, SMD 4012, 4.7 µH, 1.94 A, VLS4012CX-4R7M-1
Order No.:
 72D1435
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-4R7M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.0047 mH
1.94 A
0.126 Ω
Choke, SMD 4012, 1 µH, 3.44 A, VLS4012CX-1R0M-1
Order No.:
 72D1431
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-1R0M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.001 mH
3.44 A
0.046 Ω
Choke, SMD 4012, 100 µH, 430 mA, VLS4012CX-101M-1
Order No.:
 72D1430
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-101M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.1 mH
0.43 A
2.938 Ω
Choke, SMD 4012, 22 µH, 910 mA, VLS4012CX-220M-1
Order No.:
 72D1432
Manufacturer:
 TDK
Manufacturer SKU
 VLS4012CX-220M-1
1000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4 mm
4 mm
±20 %
1.2 mm
0.022 mH
0.91 A
0.617 Ω
