TDK

VLS3012HBX-R47M | TDK

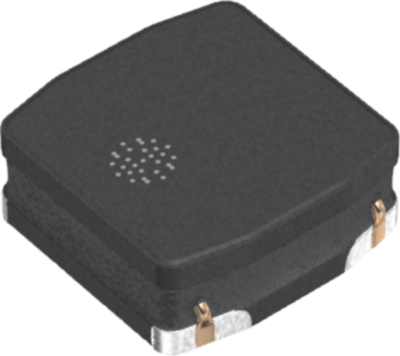

Choke, SMD 3012, 470 nH, 5.91 A, VLS3012HBX-R47M

default S
default L
Total price
(0.28 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.28 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS3012HBX-R47M, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current was achieved by the metallic magnetic material

Applications

  • Smart phones
  • SSDs
  • Compact power supply modules
  • Mobile display panels
Technical specifications
Version SMD choke
Design SMD 3012
Width 3 mm
DC current 5.91 A
DC resistance 0.035 Ω
Height 1.2 mm
Inductance 0.00047 mH
Length 3 mm
Measuring frequency 1 MHz
Saturation current 8.29 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 3012, 2.2 µH, 3.15 A, VLS3012HBX-2R2M
Order No.:
 77D0442
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-2R2M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0022 mH
3.15 A
0.106 Ω
Choke, SMD 3012, 680 nH, 5.66 A, VLS3012HBX-R68M
Order No.:
 77D0448
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-R68M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.00068 mH
5.66 A
0.038 Ω
Choke, SMD 3012, 1 µH, 5.13 A, VLS3012HBX-1R0M
Order No.:
 77D0439
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-1R0M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.001 mH
5.13 A
0.047 Ω
Choke, SMD 3012, 3.3 µH, 2.63 A, VLS3012HBX-3R3M
Order No.:
 77D0443
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-3R3M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0033 mH
2.63 A
0.15 Ω
Choke, SMD 3012, 15 µH, 1.23 A, VLS3012HBX-150M
Order No.:
 77D0438
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-150M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.015 mH
1.23 A
0.636 Ω
Choke, SMD 3012, 470 nH, 5.91 A, VLS3012HBX-R47M
Order No.:
 77D0447
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-R47M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.00047 mH
5.91 A
0.035 Ω
Choke, SMD 3012, 6.8 µH, 1.84 A, VLS3012HBX-6R8M
Order No.:
 77D0445
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-6R8M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0068 mH
1.84 A
0.285 Ω
Choke, SMD 3012, 4.7 µH, 2.23 A, VLS3012HBX-4R7M
Order No.:
 77D0444
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-4R7M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0047 mH
2.23 A
0.201 Ω
Choke, SMD 3012, 1.5 µH, 4.19 A, VLS3012HBX-1R5M
Order No.:
 77D0440
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-1R5M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0015 mH
4.19 A
0.067 Ω
Choke, SMD 3012, 22 µH, 1.12 A, VLS3012HBX-220M
Order No.:
 77D0441
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-220M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.022 mH
1.12 A
0.761 Ω
Choke, SMD 3012, 10 µH, 1.48 A, VLS3012HBX-100M
Order No.:
 77D0437
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-100M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.01 mH
1.48 A
0.415 Ω
Choke, SMD 3012, 330 nH, 6.1 A, VLS3012HBX-R33N
Order No.:
 77D0446
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012HBX-R33N
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±30 %
1.2 mm
0.00033 mH
6.1 A
0.03 Ω
