VLS3012HBX-R33N | TDK
Choke, SMD 3012, 330 nH, 6.1 A, VLS3012HBX-R33N
Not suitable for new designs
Unit Price (€ / pc.)
0.2844 € *
Standard delivery time from the manufacturer is: 14 Weeks

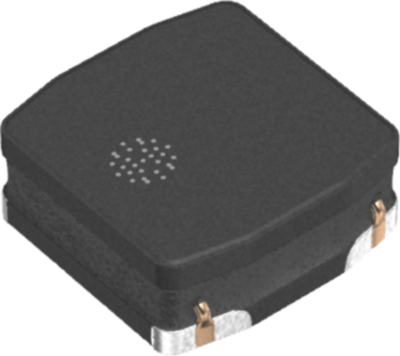

SMD choke, VLS3012HBX-R33N, TDK
Features
- Magnetic shield type wound inductor for power circuits using a metallic magnetic material
- High Magnetic shield construction and compatible with high-density mounting
- Larger current was achieved by the metallic magnetic material
Applications
- Smart phones
- SSDs
- Compact power supply modules
- Mobile display panels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 6.1 A | |
| DC resistance | 30 mΩ | |
| Saturation current | 10.12 A | |
| Measuring frequency | 1 MHz | |
| Tolerance | ±30 % | |
| Length | 3 mm | |
| Height | 1.2 mm | |
| Width | 3 mm | |
| Inductance | 330 nH | |
| Design | SMD 3012 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 2,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
