VLS3012CX-470M-1 | TDK

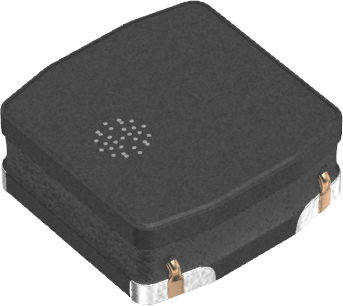

Choke, SMD 3012, 47 µH, 590 mA, VLS3012CX-470M-1

default S
front S
side S
default L
front L
side L
Total price
(0.15 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.15 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS3012CX-470M-1, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a ferrite magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current and lower Rdc
  • Operating temperature range: -40 to +105°C

Applications

  • Smart phones
  • HDDs
  • Mobile display panels
  • Compact power supply modules
Technical specifications
Version SMD choke

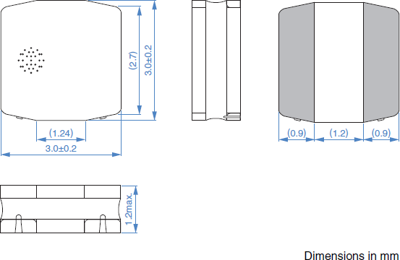

Design SMD 3012
Width 3 mm
DC current 0.59 A
DC resistance 1.447 Ω
Height 1.2 mm
Inductance 0.047 mH
Length 3 mm
Measuring frequency 1 MHz
Saturation current 0.39 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 7 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 3012, 47 µH, 590 mA, VLS3012CX-470M-1
Order No.:
 72D1420
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-470M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.047 mH
0.59 A
1.447 Ω
Choke, SMD 3012, 1 µH, 3.31 A, VLS3012CX-1R0M-1
Order No.:
 72D1418
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-1R0M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.001 mH
3.31 A
0.044 Ω
Choke, SMD 3012, 22 µH, 780 mA, VLS3012CX-220M-1
Order No.:
 77D0691
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-220M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.022 mH
0.78 A
0.668 Ω
Choke, SMD 3012, 2.2 µH, 2.55 A, VLS3012CX-2R2M-1
Order No.:
 72D1419
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-2R2M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0022 mH
2.55 A
0.074 Ω
Choke, SMD 3012, 10 µH, 1.12 A, VLS3012CX-100M-1
Order No.:
 77D0690
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-100M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.01 mH
1.12 A
0.324 Ω
Choke, SMD 3012, 100 µH, 360 mA, VLS3012CX-101M-1
Order No.:
 72D1417
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-101M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.1 mH
0.36 A
3.396 Ω
Choke, SMD 3012, 4.7 µH, 1.58 A, VLS3012CX-4R7M-1
Order No.:
 72D1421
Manufacturer:
 TDK
Manufacturer SKU
 VLS3012CX-4R7M-1
2000 pcs.
0.15 €
0.00 € *
Currently not in stock, we will order for you
SMD 3012
SMD choke
3 mm
3 mm
±20 %
1.2 mm
0.0047 mH
1.58 A
0.166 Ω
