TDK

VLS252010HBX-R33M-1 | TDK

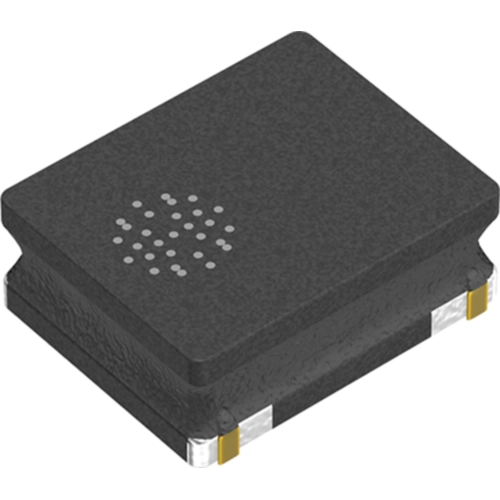

Choke, SMD 2520, 330 nH, 4.4 A, VLS252010HBX-R33M-1

default S
default L
Total price
(0.13 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.13 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS252010HBX-R33M-1, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current was achieved by the metallic magnetic material

Applications

  • Smart phones
  • SSDs
  • Compact power supply modules
  • Mobile display panels
Technical specifications
Version SMD choke
Design SMD 2520
Width 2 mm
DC current 4.4 A
DC resistance 0.031 Ω
Height 1 mm
Inductance 0.00033 mH
Length 2.5 mm
Measuring frequency 1 MHz
Saturation current 5.46 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 10 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 2520, 1.5 µH, 2.38 A, VLS252010HBX-1R5M-1
Order No.:
 75D2201
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-1R5M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0015 mH
2.38 A
0.094 Ω
Choke, SMD 2520, 240 nH, 4.6 A, VLS252010HBX-R24M-1
Order No.:
 75D2206
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-R24M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.00024 mH
4.6 A
0.029 Ω
Choke, SMD 2520, 2.2 µH, 2.07 A, VLS252010HBX-2R2M-1
Order No.:
 75D2202
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-2R2M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0022 mH
2.07 A
0.12 Ω
Choke, SMD 2520, 330 nH, 4.4 A, VLS252010HBX-R33M-1
Order No.:
 75D2207
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-R33M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.00033 mH
4.4 A
0.031 Ω
Choke, SMD 2520, 470 nH, 3.9 A, VLS252010HBX-R47M-1
Order No.:
 75D2208
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-R47M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.00047 mH
3.9 A
0.035 Ω
Choke, SMD 2520, 4.7 µH, 1.28 A, VLS252010HBX-4R7M-1
Order No.:
 75D2204
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-4R7M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0047 mH
1.28 A
0.25 Ω
Choke, SMD 2520, 680 nH, 3.5 A, VLS252010HBX-R68M-1
Order No.:
 75D2209
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-R68M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.00068 mH
3.5 A
0.048 Ω
Choke, SMD 2520, 6.8 µH, 880 mA, VLS252010HBX-6R8M-1
Order No.:
 75D2205
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-6R8M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0068 mH
0.88 A
0.406 Ω
Choke, SMD 2520, 3.3 µH, 1.48 A, VLS252010HBX-3R3M-1
Order No.:
 75D2203
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-3R3M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0033 mH
1.48 A
0.178 Ω
Choke, SMD 2520, 10 µH, 800 mA, VLS252010HBX-100M-1
Order No.:
 75D2199
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBX-100M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.01 mH
0.8 A
0.552 Ω
