VLS252010HBU-6R8M | TDK
Choke, SMD 2520, 6.8 µH, 800 mA, VLS252010HBU-6R8M
Not suitable for new designs
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: On Request

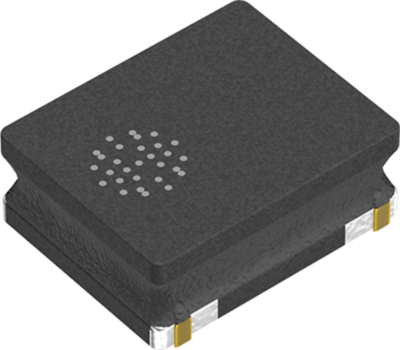

SMD choke, VLS252010HBU-6R8M, TDK
Features
- Magnetic shield type wound inductor for power circuits using a metallic magnetic material
- Larger current was achieved by the metallic magnetic material
- High withstand voltage (40V) was achieved by insulating technology of metallic materials
Applications
- LCD/LED Backlight
- LCD Panel
- OLED Panel
- LCD driver
Technical specifications
| Inductance | 6.8 µH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 1.7 A | |
| Width | 2 mm | |
| DC current | 800 mA | |
| Length | 2.5 mm | |
| DC resistance | 540 mΩ | |
| Measuring frequency | 1 MHz | |
| Height | 1 mm | |
| Design | SMD 2520 |
Download
Logistics
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
