TDK

VLS252010HBU-150M | TDK

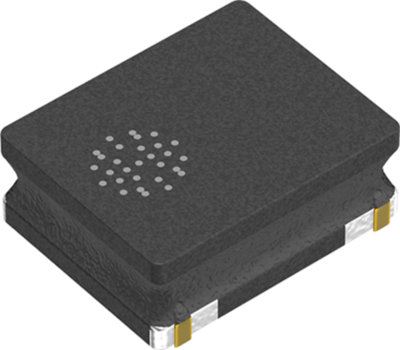

Choke, SMD 2520, 15 µH, 640 mA, VLS252010HBU-150M

default S
default L
Total price
(0.28 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.28 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS252010HBU-150M, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Larger current was achieved by the metallic magnetic material
  • High withstand voltage (40V) was achieved by insulating technology of metallic materials

Applications

  • LCD/LED Backlight
  • LCD Panel
  • OLED Panel
  • LCD driver
Technical specifications
Version SMD choke
Design SMD 2520
Width 2 mm
DC current 0.64 A
DC resistance 1.344 Ω
Height 1 mm
Inductance 0.015 mH
Length 2.5 mm
Measuring frequency 1 MHz
Saturation current 1.1 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 2520, 15 µH, 640 mA, VLS252010HBU-150M
Order No.:
 75D2194
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-150M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.015 mH
0.64 A
1.344 Ω
Choke, SMD 2520, 6.8 µH, 800 mA, VLS252010HBU-6R8M
Order No.:
 75D2198
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-6R8M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0068 mH
0.8 A
0.54 Ω
Choke, SMD 2520, 22 µH, 520 mA, VLS252010HBU-220M
Order No.:
 75D2195
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-220M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.022 mH
0.52 A
2.004 Ω
Choke, SMD 2520, 4.7 µH, 1.12 A, VLS252010HBU-4R7M
Order No.:
 75D2197
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-4R7M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0047 mH
1.12 A
0.329 Ω
Choke, SMD 2520, 3.3 µH, 1.38 A, VLS252010HBU-3R3M
Order No.:
 75D2196
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-3R3M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.0033 mH
1.38 A
0.27 Ω
Choke, SMD 2520, 10 µH, 750 mA, VLS252010HBU-100M
Order No.:
 75D2193
Manufacturer:
 TDK
Manufacturer SKU
 VLS252010HBU-100M
2000 pcs.
0.28 €
0.00 € *
Currently not in stock, we will order for you
SMD 2520
SMD choke
2 mm
2.5 mm
±20 %
1 mm
0.01 mH
0.75 A
0.696 Ω
*incl. VAT plus shipping costs
