TDK

VLS201610HBX-2R2M-1 | TDK

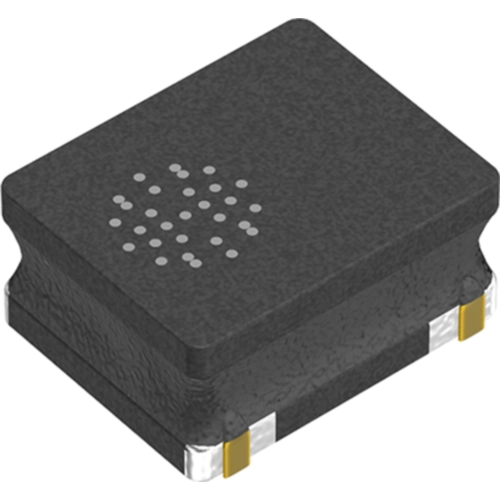

Choke, SMD 0806, 2.2 µH, 1.45 A, VLS201610HBX-2R2M-1

default S
default L
Total price
(0.13 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.13 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, VLS201610HBX-2R2M-1, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current was achieved by the metallic magnetic material

Applications

  • Smart phones
  • SSDs
  • Compact power supply modules
  • Mobile display panels
Technical specifications
Version SMD choke
Design SMD 0806
Width 1.6 mm
DC current 1.45 A
DC resistance 0.17 Ω
Height 1 mm
Inductance 0.0022 mH
Length 2 mm
Measuring frequency 1 MHz
Saturation current 1.7 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 11 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC resistance
DC current
Choke, SMD 0806, 2.2 µH, 1.45 A, VLS201610HBX-2R2M-1
Order No.:
 75D2128
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-2R2M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.0022 mH
0.17 Ω
1.45 A
Choke, SMD 0806, 330 nH, VLS201610HBX-R33M-1
Order No.:
 75D2133
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-R33M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.00033 mH
0.039 Ω
Choke, SMD 0806, 470 nH, VLS201610HBX-R47M-1
Order No.:
 75D2134
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-R47M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.00047 mH
0.041 Ω
Choke, SMD 0806, 4.7 µH, VLS201610HBX-4R7M-1
Order No.:
 75D2130
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-4R7M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.0047 mH
0.37 Ω
Choke, SMD 0806, 10 µH, 610 mA, VLS201610HBX-100M-1
Order No.:
 75D2125
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-100M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.01 mH
0.768 Ω
0.61 A
Choke, SMD 0806, 6.8 µH, VLS201610HBX-6R8M-1
Order No.:
 75D2131
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-6R8M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.0068 mH
0.558 Ω
Choke, SMD 0806, 3.3 µH, 1.02 A, VLS201610HBX-3R3M-1
Order No.:
 75D2129
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-3R3M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.0033 mH
0.252 Ω
1.02 A
Choke, SMD 0806, 1.5 µH, 2 A, VLS201610HBX-1R5M-1
Order No.:
 75D2127
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-1R5M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.0015 mH
0.116 Ω
2 A
Choke, SMD 0806, 1 µH, 2.13 A, VLS201610HBX-1R0M-1
Order No.:
 75D2126
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-1R0M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.001 mH
0.072 Ω
2.13 A
Choke, SMD 0806, 680 nH, VLS201610HBX-R68M-1
Order No.:
 75D2135
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-R68M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.00068 mH
0.053 Ω
Choke, SMD 0806, 240 nH, VLS201610HBX-R24M-1
Order No.:
 75D2132
Manufacturer:
 TDK
Manufacturer SKU
 VLS201610HBX-R24M-1
2000 pcs.
0.13 €
0.00 € *
Currently not in stock, we will order for you
SMD 0806
SMD choke
1.6 mm
2 mm
±20 %
1 mm
0.00024 mH
0.03 Ω
