VLS201610CX-R24M-1 | TDK

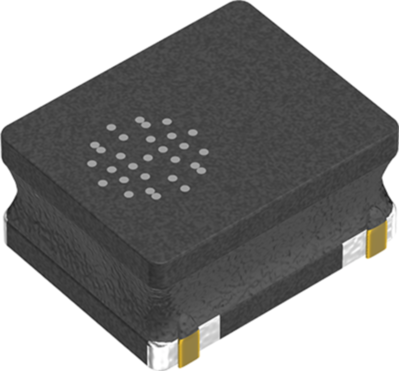

Choke, SMD 2016, 240 nH, 3.62 A, VLS201610CX-R24M-1
Not suitable for new designs
Unit Price (€ / pc.)
0.1999 € *
Standard delivery time from the manufacturer is: 14 Weeks
SMD choke, VLS201610CX-R24M-1, TDK
Features
- Magnetic shield type wound inductor for power circuits using a ferrite magnetic material
- High Magnetic shield construction and compatible with high-density mounting
- Larger current and lower Rdc
Applications
- Smart phones
- SSDs
- Compact power supply modules
- Mobile display panels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 240 nH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 4.35 A | |
| Width | 1.6 mm | |
| DC current | 3.62 A | |
| Length | 2 mm | |
| DC resistance | 40 mΩ | |
| Measuring frequency | 1 MHz | |
| Height | 1 mm | |
| Design | SMD 2016 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
