VLS201610CX-220M-1 | TDK

Choke, SMD 2016, 22 µH, 560 mA, VLS201610CX-220M-1

Order No.: 75D2108
EAN: 4099889038514
MPN:
VLS201610CX-220M-1
Series: VLS-CX
VLS201610CX-220M-1 TDK Fixed Inductors

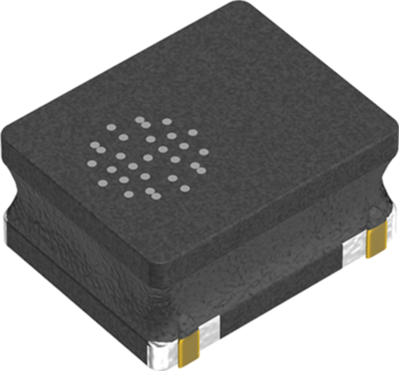

Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.2570 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
514.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.2570 €

SMD choke, VLS201610CX-220M-1, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a ferrite magnetic material
  • High Magnetic shield construction and compatible with high-density mounting
  • Larger current and lower Rdc

Applications

  • Smart phones
  • SSDs
  • Compact power supply modules
  • Mobile display panels
Technical specifications
Inductance 22 µH
Tolerance ±20 %
Version SMD choke
Saturation current 420 mA
Width 1.6 mm
DC current 560 mA
Length 2 mm
DC resistance 1.582 Ω
Measuring frequency 1 MHz
Height 1 mm
Design SMD 2016
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
