VLM10555T-R70M120-3H | TDK

Choke, SMD 10555, 700 nH, VLM10555T-R70M120-3H

Order No.: 75D2082
EAN: 4099889038460
MPN:
VLM10555T-R70M120-3H
Series: VLM

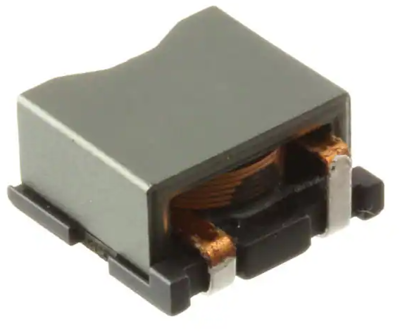

VLM10555T-R70M120-3H TDK Fixed Inductors Image 1
VLM10555T-R70M120-3H TDK Fixed Inductors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
2.5704 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,285.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.5704 €

SMD choke, VLM10555T-R70M120-3H, TDK

Features

  • Magnetic shield type wound inductor for power circuits
  • Ferrite core
  • RoHS-compliant

Applications

  • DVD players
  • VRMs
  • Mobile computers
Technical specifications
Filter Property Value
Inductance 700 nH
Saturation current 12 A
Width 10.6 mm
Length 10.5 mm
Design SMD 10555
DC resistance 2.5 mΩ
Version SMD choke
Height 5.4 mm
Tolerance ±20 %
Measuring frequency 100 kHz
Logistics
Property Value
Customs tariff number 85045000
Original Packaging Reel with 500 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
