TDK

SPM6550T-220M-HZ | TDK

Choke, SMD 6550, 22 µH, 2.6 A, SPM6550T-220M-HZ

default S
front S
side S
default L
front L
side L
Total price
(0.77 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1000 pcs.
0.77 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, SPM6550T-220M-HZ, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with ferrite core adhesive coils

Applications

  • Automotive equipment
  • Car navigation
  • Car audio

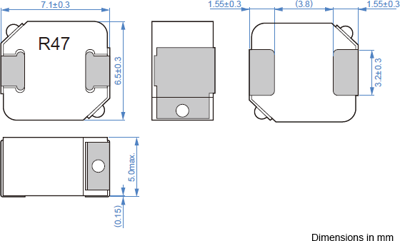

Technical specifications
Version SMD choke
Design SMD 6550
Width 6.5 mm
DC current 2.6 A
DC resistance 0.1716 Ω
Height 5 mm
Inductance 0.022 mH
Length 7.1 mm
Measuring frequency 0.1 MHz
Saturation current 3 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 6550, 4.7 µH, 8.2 A, SPM6550T-4R7M-HZ
Order No.:
 72D1364
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-4R7M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.0047 mH
8.2 A
0.0223 Ω
Choke, SMD 6550, 6.8 µH, 6.2 A, SPM6550T-6R8M-HZ
Order No.:
 72D1365
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-6R8M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.0068 mH
6.2 A
0.038 Ω
Choke, SMD 6550, 1.5 µH, 17.1 A, SPM6550T-1R5M-HZ
Order No.:
 72D1360
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-1R5M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.0015 mH
17.1 A
0.00649 Ω
Choke, SMD 6550, 10 µH, 4.9 A, SPM6550T-100M-HZ
Order No.:
 72D1357
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-100M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.01 mH
4.9 A
0.0605 Ω
Choke, SMD 6550, 15 µH, 3.6 A, SPM6550T-150M-HZ
Order No.:
 72D1358
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-150M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.015 mH
3.6 A
0.08635 Ω
Choke, SMD 6550, 3.3 µH, 10 A, SPM6550T-3R3M-HZ
Order No.:
 72D1363
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-3R3M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.0033 mH
10 A
0.01749 Ω
Choke, SMD 6550, 470 nH, 26.1 A, SPM6550T-R47M-HZ
Order No.:
 72D1367
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-R47M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.00047 mH
26.1 A
0.00297 Ω
Choke, SMD 6550, 680 nH, 16.6 A, SPM6550T-R68M-HZ
Order No.:
 72D1368
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-R68M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.00068 mH
16.6 A
0.00374 Ω
Choke, SMD 6550, 1 µH, 17.9 A, SPM6550T-1R0M-HZ
Order No.:
 72D1359
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-1R0M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.001 mH
17.9 A
0.00495 Ω
Choke, SMD 6550, 2.2 µH, 14.2 A, SPM6550T-2R2M-HZ
Order No.:
 72D1362
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-2R2M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.0022 mH
14.2 A
0.01067 Ω
Choke, SMD 6550, 22 µH, 2.6 A, SPM6550T-220M-HZ
Order No.:
 72D1361
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-220M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.022 mH
2.6 A
0.1716 Ω
Choke, SMD 6550, 330 nH, 26.7 A, SPM6550T-R33M-HZ
Order No.:
 72D1366
Manufacturer:
 TDK
Manufacturer SKU
 SPM6550T-R33M-HZ
1000 pcs.
0.77 €
0.00 € *
Currently not in stock, we will order for you
SMD 6550
SMD choke
6.5 mm
7.1 mm
±20 %
5 mm
0.00033 mH
26.7 A
0.00209 Ω
