SPM6550T-1R0M100A | TDK

Choke, SMD 6550, 1 µH, SPM6550T-1R0M100A

Order No.: 77D0644
EAN: 4099889046946
MPN:
SPM6550T-1R0M100A
Series: SPM
SPM6550T-1R0M100A TDK Fixed Inductors

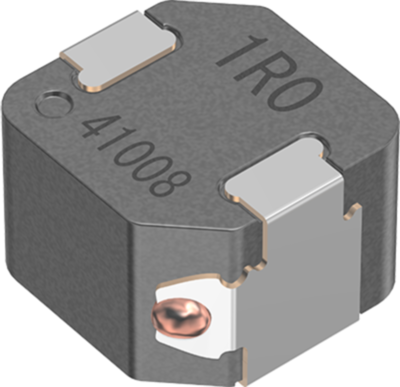

Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
809.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.8092 €

SMD choke, SPM6550T-1R0M100A, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules
Technical specifications
Inductance 1 µH
Tolerance ±20 %
Version SMD choke
Saturation current 17.9 A
Width 6.5 mm
Length 7.1 mm
DC resistance 5.17 mΩ
Measuring frequency 100 kHz
Height 5 mm
Design SMD 6550
Logistics
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
