SPM6530T-R25M230 | TDK

Choke, SMD 6530, 250 nH, 23 A, SPM6530T-R25M230

Order No.: 75D1828
EAN: 4099889037197
MPN:
SPM6530T-R25M230
Series: SPM

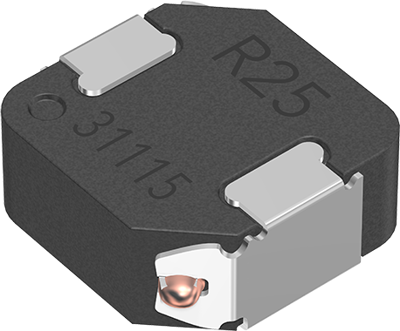

SPM6530T-R25M230 TDK Fixed Inductors Image 1
SPM6530T-R25M230 TDK Fixed Inductors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
773.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.7735 €

SMD choke, SPM6530T-R25M230, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules
Technical specifications
Filter Property Value
Inductance 250 nH
Tolerance ±20 %
Version SMD choke
Saturation current 28.5 A
Width 6.5 mm
DC current 23 A
Length 7.1 mm
DC resistance 2.31 mΩ
Measuring frequency 100 kHz
Height 3 mm
Design SMD 6530
Logistics
Property Value
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
