SPM6530T-1R5M100 | TDK
Choke, SMD 6530, 1.5 µH, 11 A, SPM6530T-1R5M100
Not suitable for new designs
Unit Price (€ / pc.)
0.595 € *
Standard delivery time from the manufacturer is: 52 Weeks

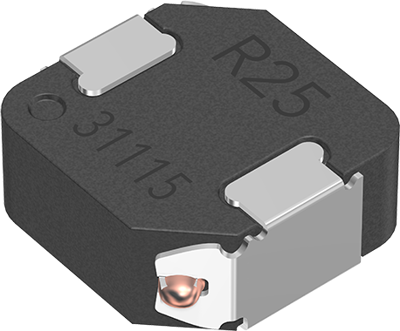

SMD choke, SPM6530T-1R5M100, TDK
Features
- Magnetic shield type wound inductor for power circuits using a metallic magnetic material
- Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
- Low inductance variance in high-temperature environments with good DC superimposition characteristics
- Operating temperature range: -40 to +125°C
Applications
- Note PCs
- HDDs
- VRMs
- Compact power supply modules
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 11 A | |
| Tolerance | ±20 % | |
| Saturation current | 11.5 A | |
| Design | SMD 6530 | |
| Width | 6.5 mm | |
| Height | 3 mm | |
| Inductance | 1.5 µH | |
| Version | SMD choke | |
| Length | 7.1 mm | |
| DC resistance | 10.67 mΩ | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
