SPM5020T-1R5M-LR | TDK

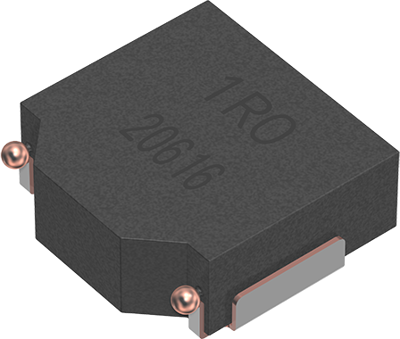

Choke, SMD 5020, 1.5 µH, 5.9 A, SPM5020T-1R5M-LR

default S
front S
side S
default L
front L
side L
Total price
(0.82 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
500 pcs.
0.82 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, SPM5020T-1R5M-LR, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules
Technical specifications
Version SMD choke

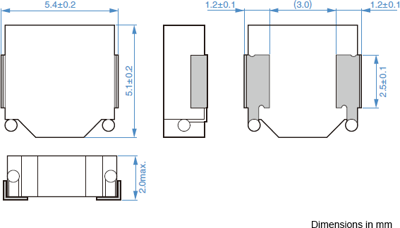

Design SMD 5020
Width 5.1 mm
DC current 5.9 A
DC resistance 0.0248 Ω
Height 2 mm
Inductance 0.0015 mH
Length 5.4 mm
Measuring frequency 0.1 MHz
Saturation current 9 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 7 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 5020, 1.5 µH, 5.9 A, SPM5020T-1R5M-LR
Order No.:
 75D1809
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-1R5M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.0015 mH
5.9 A
0.0248 Ω
Choke, SMD 5020, 10 µH, 2.3 A, SPM5020T-100M-LR
Order No.:
 75D1805
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-100M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.01 mH
2.3 A
0.1748 Ω
Choke, SMD 5020, 3.3 µH, 3.9 A, SPM5020T-3R3M-LR
Order No.:
 75D1813
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-3R3M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.0033 mH
3.9 A
0.061 Ω
Choke, SMD 5020, 6.8 µH, 2.8 A, SPM5020T-6R8M-LR
Order No.:
 75D1816
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-6R8M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.0068 mH
2.8 A
0.1185 Ω
Choke, SMD 5020, 4.7 µH, 3.7 A, SPM5020T-4R7M-LR
Order No.:
 75D1815
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-4R7M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.0047 mH
3.7 A
0.0676 Ω
Choke, SMD 5020, 1 µH, 6.8 A, SPM5020T-1R0M-LR
Order No.:
 75D1807
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-1R0M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.001 mH
6.8 A
0.0172 Ω
Choke, SMD 5020, 2.2 µH, 4.6 A, SPM5020T-2R2M-LR
Order No.:
 75D1811
Manufacturer:
 TDK
Manufacturer SKU
 SPM5020T-2R2M-LR
500 pcs.
0.82 €
0.00 € *
Currently not in stock, we will order for you
SMD 5020
SMD choke
5.1 mm
5.4 mm
±20 %
2 mm
0.0022 mH
4.6 A
0.0407 Ω
