SPM3020T-1R5M-LR | TDK

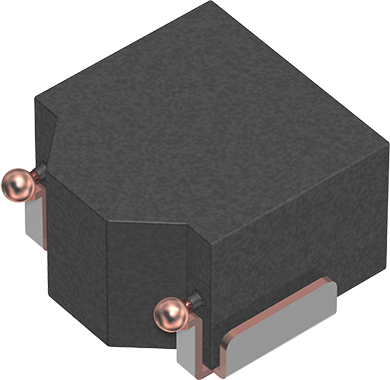

Choke, SMD 3020, 1.5 µH, 3.4 A, SPM3020T-1R5M-LR

default S
front S
side S
default L
front L
side L
Total price
(0.63 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.63 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, SPM3020T-1R5M-LR, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules
Technical specifications
Version SMD choke
Design SMD 3020
Width 3 mm
DC current 3.4 A
DC resistance 0.055 Ω
Height 2 mm
Inductance 0.0015 mH
Length 3.2 mm
Measuring frequency 0.1 MHz
Saturation current 4.4 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 2,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 3020, 470 nH, 4.8 A, SPM3020T-R47M-LR
Order No.:
 75D1741
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-R47M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.00047 mH
4.8 A
0.0227 Ω
Choke, SMD 3020, 1.5 µH, 3.4 A, SPM3020T-1R5M-LR
Order No.:
 75D1733
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-1R5M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.0015 mH
3.4 A
0.055 Ω
Choke, SMD 3020, 4.7 µH, 1.9 A, SPM3020T-4R7M-LR
Order No.:
 75D1739
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-4R7M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.0047 mH
1.9 A
0.1745 Ω
Choke, SMD 3020, 1 µH, 3.8 A, SPM3020T-1R0M-LR
Order No.:
 75D1731
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-1R0M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.001 mH
3.8 A
0.0369 Ω
Choke, SMD 3020, 2.2 µH, 2.8 A, SPM3020T-2R2M-LR
Order No.:
 75D1735
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-2R2M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.0022 mH
2.8 A
0.0842 Ω
Choke, SMD 3020, 3.3 µH, 2.2 A, SPM3020T-3R3M-LR
Order No.:
 75D1737
Manufacturer:
 TDK
Manufacturer SKU
 SPM3020T-3R3M-LR
2000 pcs.
0.63 €
0.00 € *
Currently not in stock, we will order for you
SMD 3020
SMD choke
3 mm
3.2 mm
±20 %
2 mm
0.0033 mH
2.2 A
0.121 Ω
