SPM12565XT-1R0M | TDK

Choke, SMD 12565, 1 µH, 22 A, SPM12565XT-1R0M

Order No.: 75D1697
EAN: 4099889036435
MPN:
SPM12565XT-1R0M
Series: SPM

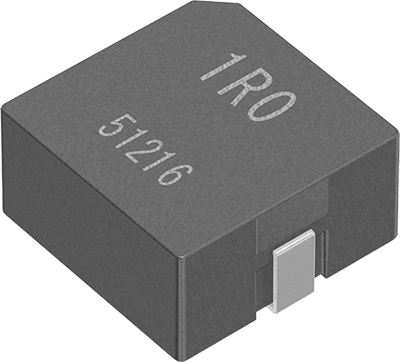

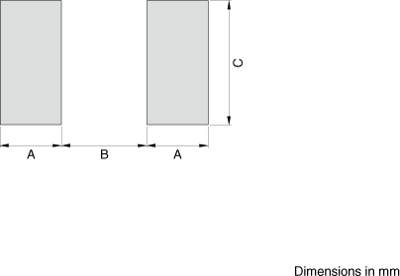

SPM12565XT-1R0M TDK Fixed Inductors Image 1
SPM12565XT-1R0M TDK Fixed Inductors Image 2
SPM12565XT-1R0M TDK Fixed Inductors Image 3
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 52 Weeks
Total Price:
464.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.9282 €

SMD choke, SPM12565XT-1R0M, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules
Technical specifications
Filter Property Value
DC resistance 2.28 mΩ
Measuring frequency 100 kHz

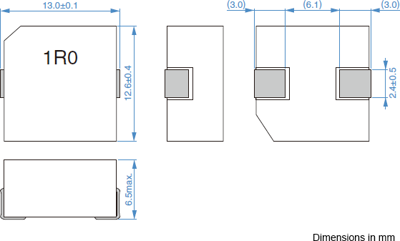

Width 13 mm
Inductance 1 µH
Version SMD choke
Height 6.5 mm
DC current 22 A
Tolerance ±20 %
Length 12.6 mm
Saturation current 42 A
Design SMD 12565
Logistics
Property Value
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
