TDK

SPM10040T-220M-HZ | TDK

Choke, SMD 1004, 22 µH, 5.2 A, SPM10040T-220M-HZ

default S
front S
side S
default L
front L
side L
Total price
(1.00 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
500 pcs.
1.00 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, SPM10040T-220M-HZ, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with ferrite core adhesive coils

Applications

  • Automotive equipment
  • Car navigation
  • Car audio

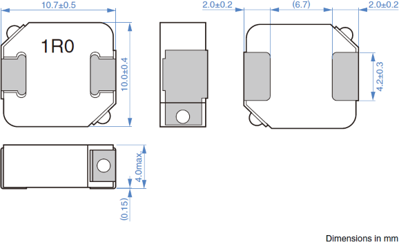

Technical specifications
Version SMD choke
Design SMD 1004
Width 10 mm
DC current 5.2 A
DC resistance 0.07894 Ω
Height 4 mm
Inductance 0.022 mH
Length 10.7 mm
Measuring frequency 0.1 MHz
Saturation current 4.6 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 11 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 1004, 15 µH, 6.8 A, SPM10040T-150M-HZ
Order No.:
 72D1288
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-150M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.015 mH
6.8 A
0.04433 Ω
Choke, SMD 1004, 10 µH, 8 A, SPM10040T-100M-HZ
Order No.:
 72D1287
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-100M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.01 mH
8 A
0.02934 Ω
Choke, SMD 1004, 6.8 µH, 9 A, SPM10040T-6R8M-HZ
Order No.:
 72D1301
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-6R8M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.0068 mH
9 A
0.02321 Ω
Choke, SMD 1004, 470 nH, 33 A, SPM10040T-R47M-HZ
Order No.:
 72D1302
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-R47M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.00047 mH
33 A
0.00191 Ω
Choke, SMD 1004, 1 µH, 23.6 A, SPM10040T-1R0M-HZ
Order No.:
 72D1290
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-1R0M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.001 mH
23.6 A
0.00319 Ω
Choke, SMD 1004, 2.2 µH, 16.7 A, SPM10040T-2R2M-HZ
Order No.:
 72D1295
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-2R2M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.0022 mH
16.7 A
0.00746 Ω
Choke, SMD 1004, 4.7 µH, 13 A, SPM10040T-4R7M-HZ
Order No.:
 72D1299
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-4R7M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.0047 mH
13 A
0.01406 Ω
Choke, SMD 1004, 1.5 µH, 20.4 A, SPM10040T-1R5M-HZ
Order No.:
 72D1291
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-1R5M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.0015 mH
20.4 A
0.00385 Ω
Choke, SMD 1004, 3.3 µH, 15.3 A, SPM10040T-3R3M-HZ
Order No.:
 72D1297
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-3R3M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.0033 mH
15.3 A
0.011 Ω
Choke, SMD 1004, 22 µH, 5.2 A, SPM10040T-220M-HZ
Order No.:
 72D1293
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-220M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.022 mH
5.2 A
0.07894 Ω
Choke, SMD 1004, 680 nH, 30 A, SPM10040T-R68M-HZ
Order No.:
 72D1303
Manufacturer:
 TDK
Manufacturer SKU
 SPM10040T-R68M-HZ
500 pcs.
1.00 €
0.00 € *
Currently not in stock, we will order for you
SMD 1004
SMD choke
10 mm
10.7 mm
±20 %
4 mm
0.00068 mH
30 A
0.00267 Ω
