SLF7045T-101MR60-H | TDK
Choke, SMD 7045, 100 µH, 610 mA, SLF7045T-101MR60-H
Not suitable for new designs
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 14 Weeks
SMD choke, SLF7045T-101MR60-H, TDK
Features
- Magnetic shield type wound inductor for power circuits
- Ferrite core
- Operating temperature range: -40 to +125°C
Applications
- Automotive equipment
- Electronic power steering
- Headlights
- Airbags
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |

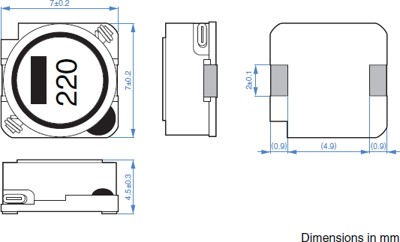

| Width | 7 mm | |
| Saturation current | 600 mA | |
| Version | SMD choke | |
| DC current | 610 mA | |
| Length | 7 mm | |
| Height | 4.5 mm | |
| DC resistance | 390 mΩ | |
| Design | SMD 7045 | |
| Measuring frequency | 100 kHz | |
| Inductance | 100 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
