SLF12575T-5R6N6R3-PF | TDK
Choke, SMD 12575, 5.6 µH, 6.3 A, SLF12575T-5R6N6R3-PF
Not suitable for new designs
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 18 Weeks

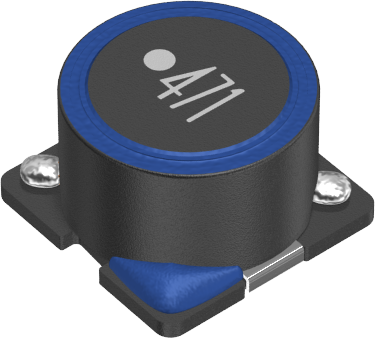

SMD choke, SLF12575T-5R6N6R3-PF, TDK
Features
- Magnetic shield type wound inductor for power circuits
- Ferrite core
- Operating temperature range: -40 to +105°C
Applications
- Thin-screen TVs
- AV equipment
- Electrical equipment
- Gaming devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 6.3 A | |
| Tolerance | ±30 % | |
| Saturation current | 7.8 A | |

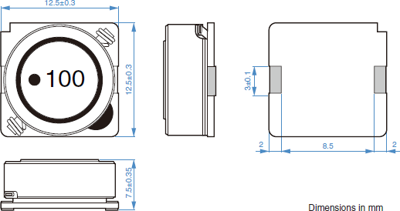

| Design | SMD 12575 | |
| Width | 12.5 mm | |
| Height | 7.5 mm | |
| Inductance | 5.6 µH | |
| Version | SMD choke | |
| Length | 12.5 mm | |
| DC resistance | 13.9 mΩ | |
| Measuring frequency | 1 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
