SLF12575T-220M4R0-PF | TDK
Choke, SMD 12575, 22 µH, 4 A, SLF12575T-220M4R0-PF
Not suitable for new designs
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: On Request

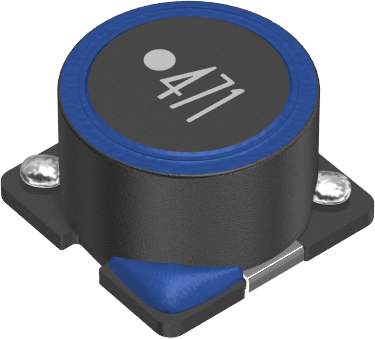

SMD choke, SLF12575T-220M4R0-PF, TDK
Features
- Magnetic shield type wound inductor for power circuits
- Ferrite core
- Operating temperature range: -40 to +105°C
Applications
- Thin-screen TVs
- AV equipment
- Electrical equipment
- Gaming devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 22 µH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 4 A | |

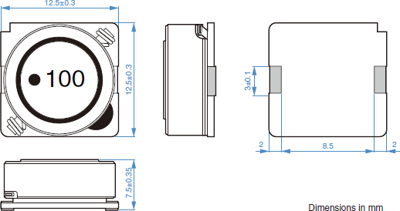

| Width | 12.5 mm | |
| DC current | 4 A | |
| Length | 12.5 mm | |
| DC resistance | 31.6 Ω | |
| Measuring frequency | 1 kHz | |
| Height | 7.5 mm | |
| Design | SMD 12575 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
