SLF12565T-330M2R8-H | TDK
Choke, SMD 12565, 33 µH, 3.4 A, SLF12565T-330M2R8-H
Not suitable for new designs
Unit Price (€ / pc.)
0.833 € *
Standard delivery time from the manufacturer is: 14 Weeks
SMD choke, SLF12565T-330M2R8-H, TDK
Features
- Magnetic shield type wound inductor for power circuits
- Ferrite core
- Operating temperature range: -40 to +125°C
Applications
- Automotive equipment
- Electronic power steering
- Headlights
- Airbags
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD choke | |
| Inductance | 33 µH | |
| DC current | 3.4 A | |
| Tolerance | ±20 % | |
| DC resistance | 48.72 mΩ | |
| Saturation current | 2.8 A | |
| Measuring frequency | 1 kHz | |

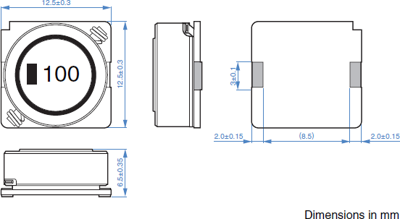

| Design | SMD 12565 | |
| Length | 12.5 mm | |
| Width | 12.5 mm | |
| Height | 6.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
