TDK

MLZ2012N4R7LT | TDK

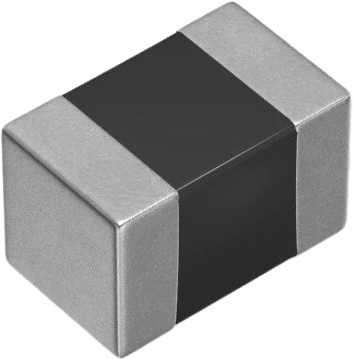

Choke, SMD 0805, 4.7 µH, 600 mA, MLZ2012N4R7LT

default S
default L
Total price
(0.10 € * / pcs.)
5.00 €
Available: 3,715 pcs.
Quantity
Price per unit*
50 pcs.
0.10 €
250 pcs.
0.08 €
1250 pcs.
0.07 €
4000 pcs.
0.06 €
10000 pcs.
0.05 €
*incl. VAT plus shipping costs
Show 9 variants
Description

Product by TDK at Bürklin Elektronik

SMD-Inductor, MLZ2012N4R7LT, TDK

The MLZ2012N4R7LT is a surface mounted type that is used as energy storage devices in switched-mode power devices to produce DC current.

Features

  • The MLZ series include inductors for decoupling circuits that have top-class DC superimposition characteristics and low DC resistance
  • They are compatible with wide frequency band noise, from low to high frequency
  • H type products have a rated current that is equivalent to that of wound coils
  • TW type products are the new standard type products that have both large current and low resistance
  • L type products have a resistance up to 60% lower than W type products
  • Operating temperature range: –55 to +125 °C (including self-temperature rise)

Applications

  • Smart phones, tablet terminals, note PCs, various modules such as camera modules, DSCs, video games, portable memory audio devices, navigation systems, PNDs, WLANs, SSDs
Technical specifications
Version SMD choke
Design SMD 0805
Width 1.25 mm
DC current 0.6 A
DC resistance 0.18 Ω
Height 0.85 mm
Inductance 0.0047 mH
Length 2 mm
Measuring frequency 70 MHz
Saturation current 0.13 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 4,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 9 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 0805, 4.7 µH, 600 mA, MLZ2012N4R7LT
Order No.:
 75D0722
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N4R7LT
50 pcs.
0.10 €
250 pcs.
0.08 €
1250 pcs.
0.07 €
4000 pcs.
0.06 €
10000 pcs.
0.05 €
5.00 € *
Available: 3,715 pcs.
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.0047 mH
0.6 A
0.18 Ω
Choke, SMD 0805, 10 µH, 0.1 mA, MLZ2012N100LT
Order No.:
 75D0706
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N100LT
2000 pcs.
0.05 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
1.25 mm
0.01 mH
0.0001 A
0.3 Ω
Choke, SMD 0805, 3.3 µH, 0.1 mA, MLZ2012N3R3LT
Order No.:
 75D0720
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N3R3LT
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.0033 mH
0.0001 A
0.15 Ω
Choke, SMD 0805, 2.2 µH, 0.1 mA, MLZ2012N2R2LT
Order No.:
 75D0718
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N2R2LT
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.0022 mH
0.0001 A
0.12 Ω
Choke, SMD 0805, 15 µH, 0.1 mA, MLZ2012N150LT
Order No.:
 75D0710
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N150LT
2000 pcs.
0.05 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
1.25 mm
0.015 mH
0.0001 A
0.47 Ω
Choke, SMD 0805, 1.5 µH, 0.1 mA, MLZ2012N1R5LT
Order No.:
 75D0714
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N1R5LT
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.0015 mH
0.0001 A
0.1 Ω
Choke, SMD 0805, 1 µH, 0.1 mA, MLZ2012N1R0LT
Order No.:
 75D0712
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N1R0LT
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.001 mH
0.0001 A
0.06 Ω
Choke, SMD 0805, 100 µH, 140 mA, MLZ2012N101LT
Order No.:
 75D0708
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N101LT
2000 pcs.
0.05 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
1.25 mm
0.1 mH
0.14 A
3.5 Ω
Choke, SMD 0805, 22 µH, 300 mA, MLZ2012N220LT
Order No.:
 75D0716
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012N220LT
2000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
1.25 mm
0.022 mH
0.3 A
0.67 Ω
