MLZ2012M3R3ATD69 | TDK

Choke, SMD 0805, 3.3 µH, 500 mA, MLZ2012M3R3ATD69

Order No.: 72D1253
EAN: 4099889004809
MPN:
MLZ2012M3R3ATD69
Series: MLZ
TDK

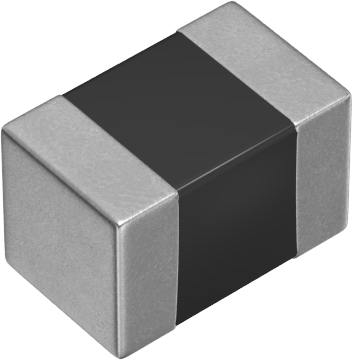

MLZ2012M3R3ATD69 TDK Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Available: 880 pcs.
Leadtime: On Request **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3927 €
50 pcs.
0.3070 €
250 pcs.
0.2511 €
1000 pcs.
0.2237 €
2000 pcs.
0.1999 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD choke, MLZ2012M3R3ATD69, TDK

Features

  • Low DC resistance
  • Compatible with wide frequency band noise, from low to high frequency
  • Ferrite core
  • Compliant with AEC-Q200

Applications

  • Smart phones
  • Tablet terminals
  • Video games
  • Portable memory audio devices
  • PNDs, WLANs, SSDs
Technical specifications
Version SMD choke
Design SMD 0805
Width 1.25 mm
DC current 500 mA
DC resistance 200 mΩ
Height 1.25 mm
Inductance 3.3 µH
Length 2 mm
Measuring frequency 2 MHz
Saturation current 350 mA
Tolerance ±20 %
Logistics
Customs tariff number 85045000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
