TDK

MLZ2012DR10DT000 | TDK

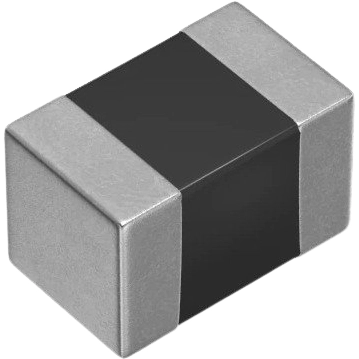

Choke, SMD 0805, 100 nH, 1 mA, MLZ2012DR10DT000

default S
default L
Total price
(0.04 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
4000 pcs.
0.04 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, MLZ2012DR10DT000, TDK

Features

  • Low DC resistance
  • Compatible with wide frequency band noise, from low to high frequency
  • Ferrite core
  • Compliant with AEC-Q200

Applications

  • Smart phones
  • Tablet terminals
  • Video games
  • Portable memory audio devices
  • PNDs, WLANs, SSDs
Technical specifications
Version SMD choke
Design SMD 0805
Width 1.25 mm
DC current 0.001 A
DC resistance 0.07 Ω
Height 0.85 mm
Inductance 0.0001 mH
Length 2 mm
Measuring frequency 25 MHz
Saturation current 1 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 4,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 0805, 100 nH, 1 mA, MLZ2012DR10DT000
Order No.:
 75D0672
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012DR10DT000
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.0001 mH
0.001 A
0.07 Ω
Choke, SMD 0805, 220 nH, 1 mA, MLZ2012DR22DT000
Order No.:
 75D0674
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012DR22DT000
4000 pcs.
0.04 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
0.85 mm
0.00022 mH
0.001 A
0.13 Ω
Choke, SMD 0805, 470 nH, 1 mA, MLZ2012DR47DT000
Order No.:
 75D0676
Manufacturer:
 TDK
Manufacturer SKU
 MLZ2012DR47DT000
2000 pcs.
0.05 €
0.00 € *
Currently not in stock, we will order for you
SMD 0805
SMD choke
1.25 mm
2 mm
±20 %
1.25 mm
0.00047 mH
0.001 A
0.18 Ω
