MLZ1608N6R8LTD25 | TDK
Choke, SMD 0603, 6.8 µH, 500 mA, MLZ1608N6R8LTD25
Unit Price (€ / pc.)
0.1035 € *
Standard delivery time from the manufacturer is: On Request

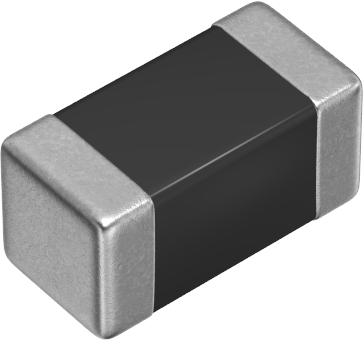

SMD choke, MLZ1608N6R8LTD25, TDK
Features
- Low DC resistance
- Compatible with wide frequency band noise, from low to high frequency
- Ferrite core
- Compliant with AEC-Q200
Applications
- Smart phones
- Tablet terminals
- Video games
- Portable memory audio devices
- PNDs, WLANs, SSDs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 6.8 µH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 80 mA | |

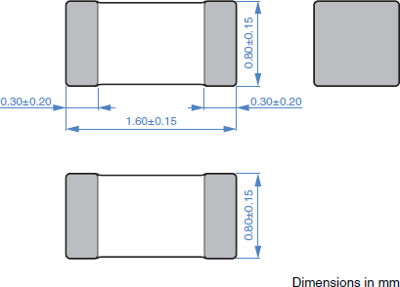

| Width | 0.8 mm | |
| DC current | 500 mA | |
| Length | 1.6 mm | |
| DC resistance | 500 mΩ | |
| Measuring frequency | 2 MHz | |
| Height | 0.8 mm | |
| Design | SMD 0603 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
