KLZ2012PHR220WTD25 | TDK

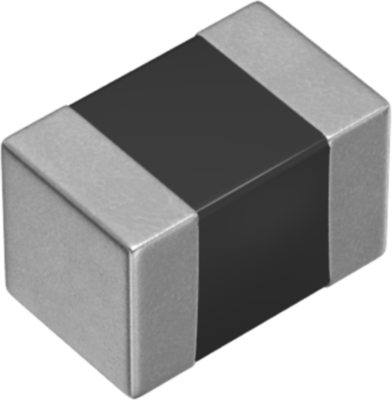

Choke, SMD 0805, 22 µH, 220 mA, KLZ2012PHR220WTD25
Not suitable for new designs
Unit Price (€ / pc.)
0.1428 € *
Standard delivery time from the manufacturer is: 52 Weeks
SMD choke, KLZ2012PHR220WTD25, TDK
Features
- Low DC resistance
- Guide electric property resin absorbs external stress, and mechanical stress, resistance force to thermal shock is improved
- Easing by conductive resin thermal stress, and respond for High-temperature environment of 150°C
- Compliant with AEC-Q200
Applications
- Automotive equipment
- Smart phones
- Camera modules
- Navigation systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Width | 1.25 mm | |
| Saturation current | 100 mA | |
| Version | SMD choke | |
| DC current | 220 mA | |
| Length | 2 mm | |
| Height | 1.25 mm | |
| DC resistance | 1.625 Ω | |
| Design | SMD 0805 | |
| Measuring frequency | 2 MHz | |
| Inductance | 22 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
