CLF7045NIT-331M-D | TDK
Choke, SMD 7045, 330 µH, 500 mA, CLF7045NIT-331M-D
Not suitable for new designs
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: On Request

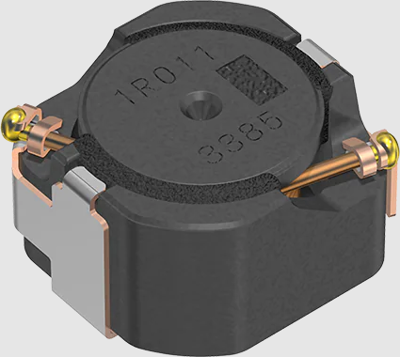

SMD choke, CLF7045NIT-331M-D, TDK
Features
- Magnetic shield type wound inductor for power circuits
- Compliant with AEC-Q200
- Ferrite core
Applications
- Automotive equipment
- Electronic power steering
- Headlights
- ECM
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 330 µH | |
| Tolerance | ±20 % | |
| Version | SMD choke | |
| Saturation current | 580 mA | |
| Width | 7 mm | |
| DC current | 500 mA | |
| Length | 7.4 mm | |
| DC resistance | 960 mΩ | |
| Measuring frequency | 100 kHz | |
| Height | 4.5 mm | |
| Design | SMD 7045 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
