B32352A4505J030 | TDK

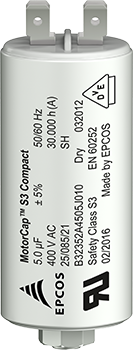

Motor film capacitor, 5 µF, ±5 %, 450 V (AC), PP, B32352A4505J030
Unit Price (€ / pc.)
3.9270 € *
Available: 4 pcs.
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9270 €
5 pcs.
3.6414 €
10 pcs.
3.4272 €
25 pcs.
3.2368 €
50 pcs.
3.0821 €
*incl. VAT plus shipping costs
Subject to prior sale
AC Film capacitor, B32352A4505J030, TDK
The B32352A4505J030 AC Film capacitor is suitable for general sine wave applications, mainly as motor run capacitor. This product has self-healing properties and high insulation resistance.
Features
- Low dissipation factor
- Highest safety level S3
- EN 60335-1 compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±5 % | |
| max. operating temperature | 85 °C | |
| Dielectric material | PP | |
| Height | 62 mm | |
| Design | can | |
| Rated voltage (AC) | 450 V | |
| min. operating temperature | -25 °C | |
| Capacity | 5 µF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 840 pieces |
| Customs tariff number | 85322500 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
