TSF-40C | TDK
Ceramic capacitor, 1.08 nF, 20 kV (AC), ±10 %, Z5T, TSF-40C
Not suitable for new designs
Unit Price (€ / pc.)
56.1680 € *
Standard delivery time from the manufacturer is: On Request

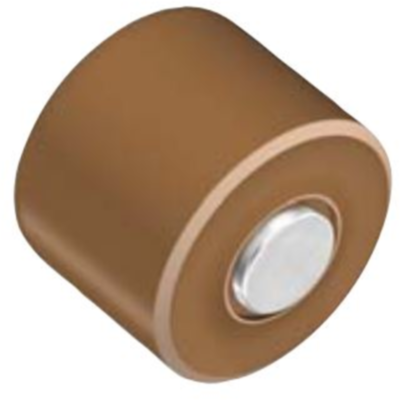

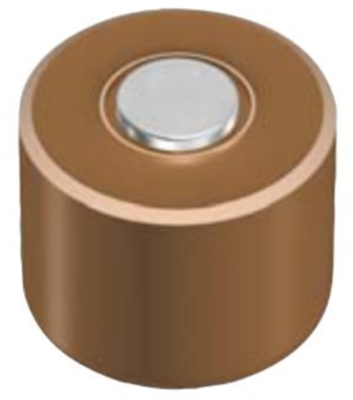

Ultra high voltage ceramic capacitor TSF-40C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -30 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 85 °C | |
| Capacity | 1.08 nF | |
| Dielectric material | Z5T | |
| Rated voltage (AC) | 20 kV | |
| Length | 40 mm | |
| diameter | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322300 |
| Original Packaging | Reel with 30 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
