CKG57NX5R1H226M500JH | TDK
Ceramic capacitor, 22 µF, 50 V (DC), ±20 %, SMD 2220 (5750), X5R, CKG57NX5R1H226M500JH
Not suitable for new designs - NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.3681 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,368.10 € *
Price list
Quantity
Price per unit*
1000 pcs.
2.3681 €
2000 pcs.
2.2848 €
*incl. VAT plus shipping costs
Subject to prior sale

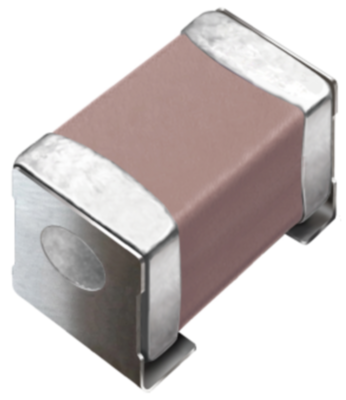

Capacitor, CKG57NX5R1H226M500JH, TDK
Features
- Higher mechanical endurance is realized by metal-frame structure
- Twice capacitance is realized by double-stacked structure without changing footprint
- Lower ESR and ESL than Al caps
- C0G temperature characteristic which has excellent stable temperature and DC-bias characteristcs is applicable
- Mounting on Al board is applicable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 22 µF | |
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % | |
| Dielectric material | X5R | |
| Design | SMD 2220 (5750) | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 85 °C | |
| Length | 5.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322300 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
