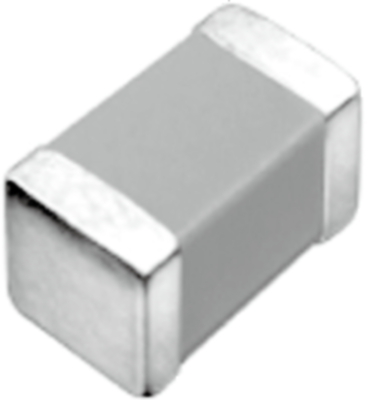

CGA3E2C0G1H562J080AA | TDK
Ceramic capacitor, 5.6 nF, 50 V (DC), ±5 %, SMD 0603 (1608), C0G, CGA3E2C0G1H562J080AA
Not suitable for new designs
Unit Price (€ / pc.)
0.0464 € *
Standard delivery time from the manufacturer is: 12 Weeks
Capacitor, CGA3E2C0G1H562J080AA, TDK
Features
- High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers
- A monolithic structure ensures superior mechanical strength and reliability
- Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values
- Low self-heating and high ripple resistance due to low ESR.
- AEC-Q200 compliant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Length | 1.6 mm | |
| Design | SMD 0603 (1608) | |
| Dielectric material | C0G | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Capacity | 5.6 nF | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322300 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
