CC45SL3FD221JYGNA | TDK

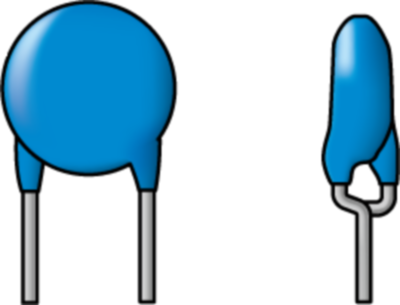

Ceramic capacitor, 220 pF, 3 kV (DC), ±5 %, radial, pitch 7.5 mm, SL, CC45SL3FD221JYGNA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7735 € *
Available: 1,760 pcs.
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7735 €
50 pcs.
0.5593 €
250 pcs.
0.4403 €
1000 pcs.
0.3808 €
2000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Ceramic capacitor, CC45SL3FD221JYGNA, TDK
Features
- Low dissipation factor and decreased self-heating temperature in the high frequency and high voltage application
Applications
- Snubber circuit protection of power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 220 pF | |
| Rated voltage (DC) | 3 kV | |
| Tolerance | ±5 % | |
| Dielectric material | SL | |
| Design | radial | |
| Grid | 7.5 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 105 °C | |
| diameter | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322300 |
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
