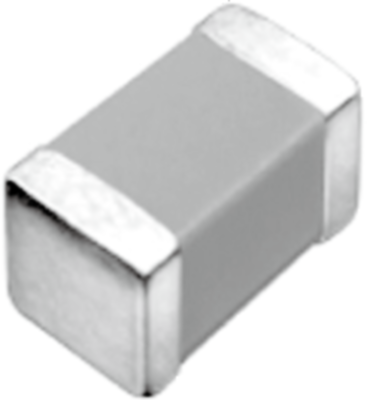

C1005X7R1E223K050BB | TDK
Ceramic capacitor, 22 nF, 25 V (DC), ±10 %, SMD 0402, X7R, C1005X7R1E223K050BB
Not suitable for new designs
Unit Price (€ / pc.)
0.0095 € *
Standard delivery time from the manufacturer is: On Request
Capacitor, C1005X7R1E223K050BB, TDK
Features
- High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers
- A monolithic structure ensures superior mechanical strength and reliability
- Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values
- Low self-heating and high ripple resistance due to low ESR
Applications
- General electronic equipment
- Mobile communication equipment
- Power supply circuit
- Office automation equipment
- TV, LED displays
- Servers, PCs, Notebooks, Tablets
Technical specifications
| Tolerance | ±10 % | |
| Design | SMD 0402 | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 25 V | |
| Length | 1 mm | |
| Capacity | 22 nF | |
| max. operating temperature | 125 °C | |
| Dielectric material | X7R |
Download
Logistics
| Original Packaging | Reel with 10,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85322400 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
