SD160701 | TDK

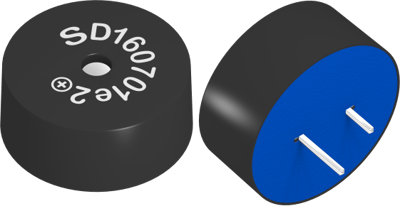

Buzzer, 4.096 kHz, 80 dB, 3 VDC, black, SD160701
Unit Price (€ / pc.)
1.6779 € *
Standard delivery time from the manufacturer is: 8 Weeks
Acoustic Signal Transmitter, SD160701, TDK
Electromagnetic buzzer
FEATURES
- These are thin-type electromagnetic buzzers with a height of only 7mm. They provide output over a relatively wide band, making them suitable for music.
- Pin type terminal construction enables direct mounting onto printed circuit boards.
Technical Data
- Resonant frequency: 4.096 kHz
- Colour: black
- Sound pressure level: 80 dB
- Installation diameter: 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Sound pressure level | 80 db | |
| Colour | black | |
| Voltage | 3 VDC | |
| Installation diameter | 16 mm | |
| Frequency | 4.096 kHz | |
| Version | buzzer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
