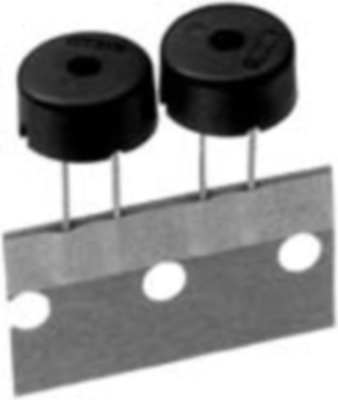

PS1420P02CT | TDK

Buzzer, 2 kHz, 70 dB, 5 VDC, gray/black, PS1420P02CT

Order No.: 76D6005
EAN: 4099891543013
MPN:
PS1420P02CT
Series: PS
PS1420P02CT TDK Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 1,738 pcs.
Next delivery: 3,500 pcs. on 2025-11-03
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.1424 €
100 pcs.
0.9758 €
500 pcs.
0.8568 €
1000 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

Acoustic Signal Transmitter, PS1420P02CT, TDK

Piezoelectronic buzzer

FEATURES

  • Sounding body (unimorph) that piezo bonded the diaphragm is used, and attach on circuit, and is easy design high performance efficiency piezoelectric buzzer.
  • They feature extremely low power consumption in comparison to electromagnetic units.
  • They can be used with automated inserters. Moisture-resistant models are also available.
  • Because these buzzers are designed for external excitation, the same part can serve as both a musical tone oscillator and a buzzer.

Technical Data

  • Resonant frequency: 2 kHz
  • Colour: gray/black
  • Sound pressure level: 70 dB
  • Installation diameter: 14 mm
Technical specifications
Filter Property Value
Voltage 5 VDC
Frequency 2 kHz
Sound pressure level 70 db
Version buzzer
Colour gray/black
Installation diameter 14 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85318040
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
