CCG-30-24-05S | TDK-Lambda

DC converter, 9-36 VDC, 30 W, 1 output, 5 VDC, 89 % efficiency, CCG-30-24-05S

Order No.: 70C1303
EAN: 4099891339555
MPN:
CCG-30-24-05S
Series: CCG

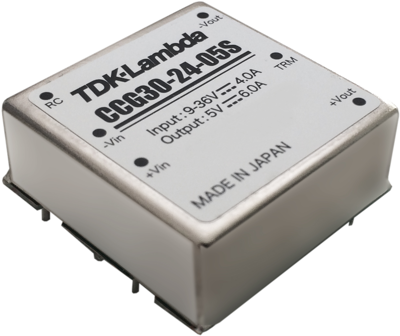

CCG-30-24-05S TDK-Lambda DC/DC Converters
Image may differ
Unit Price (€ / pc.)
43.8753 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
263.25 € *
Price list
Quantity
Price per unit*
6 pcs.
43.8753 €
24 pcs.
41.7690 €
*incl. VAT plus shipping costs
Subject to prior sale

DC-DC Converter, CCG-30-24-05S, TDK-LAMBDA

The cost-effective CCG converter series come in the standard format 25.4 x 25.4 mm (1 “x1“, 9.9mm height), have a 4:1 wide-range input. They are completely shielded with a metal housing. The typical use is for applications in industry, transportation, data and telecommunications, as well as portable battery operated devices. The input voltage range is either 9-36 or 18-76Vdc. The output delivers 3.3, 5, 12, 15, 24 and 30 VDC as single and +/-12 or +/-15VDC as dual outputs, whereby the output voltage can be adjusted by +/- 10%. The CCG-DC-DC converters have a high degree of efficiency and work at ambient temperatures from 40 ° C to + 85 ° C. In addition to the adjustable output voltage, the standard equipment includes a remote on / off function, overcurrent and overvoltage protection. The series comes with a 5-year warranty.

FEATURES

  • 1x1 inch standard footprint and pinning
  • 1.5 kVdc input-output isolation
  • High efficiency up to 92%
  • -40 to +85°C ambient temp., up to 110°C case temp.
  • Potted, six sides shielded
  • Remote on/off, OCP (hiccup)
Technical specifications
Number of outputs 1
Output current 6 A
Output voltage DC 5 VDC
Input voltage AC 9-36 VDC
Power 30 W
efficiency 89 %
Design DIP6
Isolation voltage 1.5 kV
Length 25.4 mm
Width 25.4 mm
Height 9.9 mm
Logistics
Country of origin JP
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
