RWS-300B-5 | TDK-Lambda

AC/DC power supply, 5 VDC, 50 A, 250 W, RWS-300B-5

Order No.: 70C1099
EAN: 4099891290436
MPN:
RWS-300B-5
Series: RWS

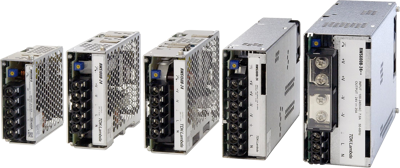

RWS-300B-5 TDK-Lambda Built-In Power Supplies Image 1

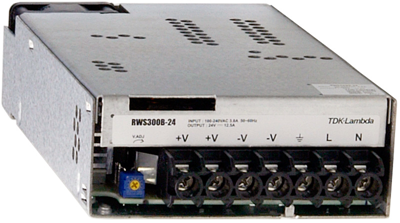

RWS-300B-5 TDK-Lambda Built-In Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
112.7882 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
112.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
112.7882 €

AC/DC Power Supply, RWS-300B-5, TDK-Lambda

The RWS-B series (50 to 1500 W) offers solid performance at an excellent price-performance ratio! Thus these power supplies have an extremely long life time of the electrolytic capacitors (ecap-lifetime) and 7 years warranty. All RWS-B models work with an AC wide range input of 85 - 265 V and offer output voltages from 5 to 48VDC. This makes them perfect for use in industrial, measurement, communication, LED and broadcast applications. The RWS1000B/ME and RWS1500B/ME devices also have medical approval (IEC 60601-1).

Features

  • 10 years lifetime of the E-Cap
  • Global security approvals
  • Compact size
Technical specifications
Width 170 mm
Length 102 mm
Height 41 mm
Power 250 W
efficiency 78.5 %
Number of outputs 1
Output current 50 A
Output voltage DC 5 VDC
Input voltage AC 85-265 VAC
Logistics
Customs tariff number 85044095
Country of origin MY
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Tris(2-methoxyethoxy)vinylsilane, Lead
