RWS-300B-36 | TDK-Lambda
AC/DC power supply, 36 VDC, 8.4 A, 300 W, RWS-300B-36
Unit Price (€ / pc.)
112.7882 € *
Standard delivery time from the manufacturer is: 9 Weeks

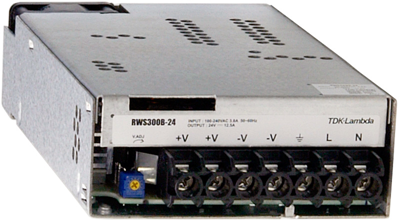

AC/DC Power Supply, RWS-300B-36, TDK-Lambda

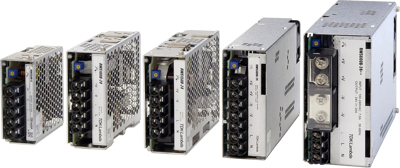

The RWS-B series (50 to 1500 W) offers solid performance at an excellent price-performance ratio! These power supplies have an extremely long life time of the electrolytic capacitors (ecap-lifetime) and 7 years warranty. All RWS-B models work with an AC wide range input of 85 - 265 V and offer output voltages from 5 to 48VDC. This makes them perfect for use in industrial, measurement, communication, LED and broadcast applications. The RWS1000B/ME and RWS1500B/ME devices also have medical approval (IEC 60601-1).
Features
- 10 years lifetime of the E-Cap
- Global security approvals
- Compact size
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 36 VDC | |
| Power | 300 W | |
| efficiency | 88 % | |
| Length | 102 mm | |
| Height | 41 mm | |
| Input voltage AC | 85-265 VAC | |
| Width | 170 mm | |
| Number of outputs | 1 | |
| Output current | 8.4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Tris(2-methoxyethoxy)vinylsilane, Lead |
| RoHS conform | Yes |
| SVHC free | No |
