RWS-300B-15 | TDK-Lambda

AC/DC power supply, 15 VDC, 20 A, 300 W, RWS-300B-15

Order No.: 70C1095
EAN: 4099891290399
MPN:
RWS-300B-15
Series: RWS

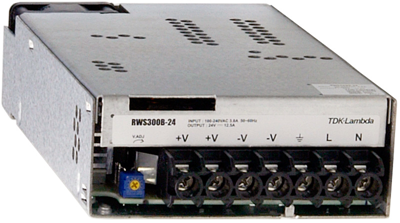

RWS-300B-15 TDK-Lambda Built-In Power Supplies Image 1
RWS-300B-15 TDK-Lambda Built-In Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
128.6628 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
128.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
128.6628 €

AC/DC Power Supply, RWS-300B-15, TDK-Lambda

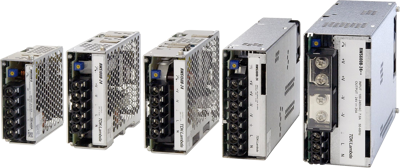

The RWS-B series (50 to 1500 W) offers solid performance at an excellent price-performance ratio! Thus these power supplies have an extremely long life time of the electrolytic capacitors (ecap-lifetime) and 7 years warranty. All RWS-B models work with an AC wide range input of 85 - 265 V and offer output voltages from 5 to 48VDC. This makes them perfect for use in industrial, measurement, communication, LED and broadcast applications. The RWS1000B/ME and RWS1500B/ME devices also have medical approval (IEC 60601-1).

Features

  • 10 years lifetime of the E-Cap
  • Global security approvals
  • Compact size
Technical specifications
Width 170 mm
Length 102 mm
Height 41 mm
Power 300 W
efficiency 84.5 %
Number of outputs 1
Output current 20 A
Output voltage DC 15 VDC
Input voltage AC 85-265 VAC
Logistics
Customs tariff number 85044095
Country of origin MY
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Tris(2-methoxyethoxy)vinylsilane, Lead
