LS-35-36 | TDK-Lambda

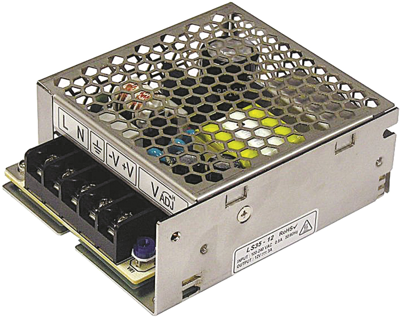

AC/DC Power Supply, LS-35-36, TDK-Lambda

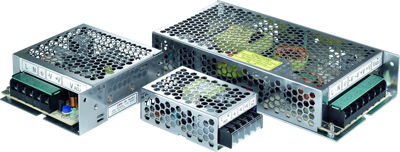

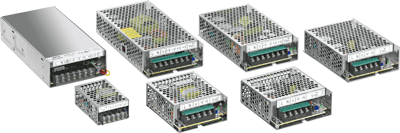

The LS-switching power supply series has power stages from 25 to 200W and offers the user both a very advantageous purchase price and very high MTBF values of up to 900,000 hours. Equipped with a five-year warranty, the LS series has a long operating performance at ambient temperatures from -25 up to + 70 ° C. The series has a wide range input from 88 to 264 V and can withstand overvoltages of up to 300 V AC for five seconds. All common output voltages are available (3.3V to 48V).

Features

• High MTBF
• High efficiency
• -25 to +70°C Operating temperature
• Low derating above 50°C (up to 70% load at 70°C available)
• Curve B EMC
