LS-100-12 | TDK-Lambda

AC/DC power supply, 12 VDC, 8.5 A, 100 W, LS-100-12

Order No.: 70C1154
EAN: 4099891290542
MPN:
LS-100-12
Series: LS

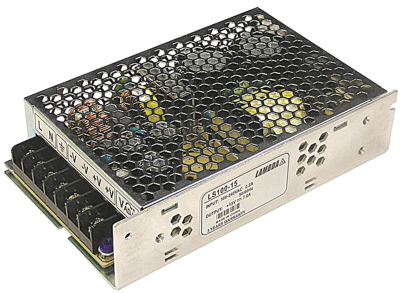

LS-100-12 TDK-Lambda Built-In Power Supplies Image 1

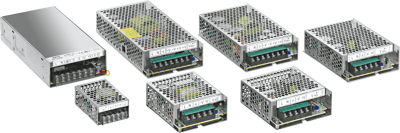

LS-100-12 TDK-Lambda Built-In Power Supplies Image 2

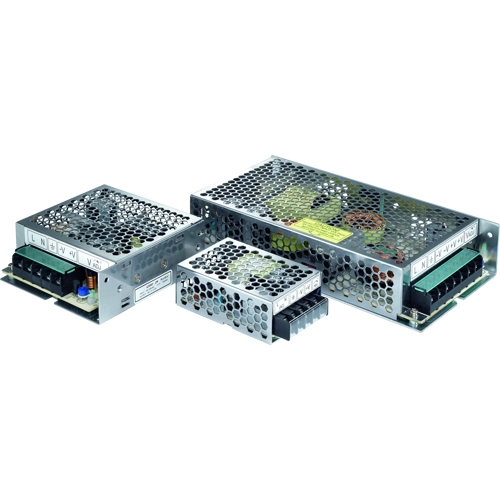

LS-100-12 TDK-Lambda Built-In Power Supplies Image 3
Image may differ
Unit Price (€ / pc.)
41.5191 € *
Available: 10 pcs.
Total Price:
415.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
41.5191 €

AC/DC Power Supply, LS-100-12, TDK-Lambda

The LS-switching power supply series has power stages from 25 to 200W and offers the user both a very advantageous purchase price and very high MTBF values of up to 900,000 hours. Equipped with a five-year warranty, the LS series has a long operating performance at ambient temperatures from -25 up to + 70 ° C. The series has a wide range input from 88 to 264 V and can withstand overvoltages of up to 300 V AC for five seconds. All common output voltages are available (3.3V to 48V).

Features

  • High MTBF
  • High efficiency
  • -25 to +70°C Operating temperature
  • Low derating above 50°C (up to 70% load at 70°C available)
  • Curve B EMC
Technical specifications
Width 38 mm
Length 160 mm
Height 97 mm
Power 100 W
efficiency 81 %
Number of outputs 1
Output current 8.5 A
Output voltage DC 12 VDC
Input voltage AC 88-264 VAC
Logistics
Customs tariff number 85044095
Country of origin CN
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
