B72812Q1120S160 | TDK (EPCOS)

Varistor, SMD 0508, VV 26 V, 5 A, 12 V (DC), 10 V (AC), ±20 %, 0.003 VA (AC), B72812Q1120S160

Order No.: 82E6945
EAN: 4099879995254
MPN:
B72812Q1120S160
B72812Q1120S160 TDK (EPCOS) Varistors

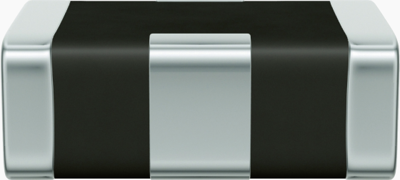

Image may differ
Unit Price (€ / pc.)
0.2451 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
980.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.2451 €

High speed varistor, B72812Q1120S160, EPCOS

Features

  • Low insertion loss
  • Low leakage current
  • No signal distortion
  • Long-term ESD stability
  • Bidirectional protection
  • RoHS-compatible

Applications

  • ESD protection for high-speed data lines such as USB 2.0, firewire, IEEE 1394 interfaces, RF antennas, RF modules
  • ESD protection for I/O ports of video and audio lines
  • Integrated solutions for connectors in mobile communication and handheld devices
Technical specifications
Rated voltage (DC) 12 V
Varistor Voltage Type 26 V
Rated voltage (AC) 10 V
Design SMD 0508
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 125 °C
max. Surge current, transient (8/20 µs) 5 A
Power dissipation 0.003 W
Logistics
Country of origin HR
Customs tariff number 85332900
Original Packaging Reel with 4,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
